Fossibot F3600
The FOSSiBOT F3600 is a portable power station designed for extended off-grid use, offering a significant upgrade over its predecessor, the F2400. This powerhouse boasts a much larger Lithium Iron Phosphate (LiFePO4) battery with a massive capacity of 3,840Wh.
This battery type is known for its extended lifespan, maintaining 80% of its original capacity after a remarkable 6,500 charge cycles according to the manufacturer. To maintain battery health during storage, it’s recommended to recharge the unit above 50% every 3 months. The F3600 incorporates a Battery Management System (BMS) with comprehensive monitoring features, keeping track of load, voltage, temperature, and charging status for overall safety and longevity.
While the F3600 is larger than the F2400, measuring 23.98 x 12.64 x 18.72 inches (60.90 x 32.10 x 47.55 cm) and weighing 92.59 lbs (42 kg), it remains portable for car transportation. It can operate in temperatures ranging from -15°C to 40°C (-4°F to 104°F).
The F3600 offers multiple charging methods, all boasting faster speeds compared to the F2400. It supports AC charging with a maximum input of 1500W, allowing for a full charge in approximately 3 hours. Solar charging is also an option, with a maximum input of 2000W.
The charging time via solar panels will vary depending on sunlight conditions. Additionally, a car charging cable is included for charging from a car’s cigarette lighter port at either 12V or 24V (charging times vary based on voltage). Notably, the F3600 allows for combining AC and solar charging for an impressive combined maximum input of 3500W, achieving a full charge in just 1 hour and 50 minutes.
The F3600 delivers a significant upgrade in output power compared to the F2400. With a total output power of 3,868W, it can run a wider variety of appliances and electronics. It features a pure sine wave inverter, ensuring compatibility with sensitive electronics. The unit can also handle brief surges in power of up to 6,600W.

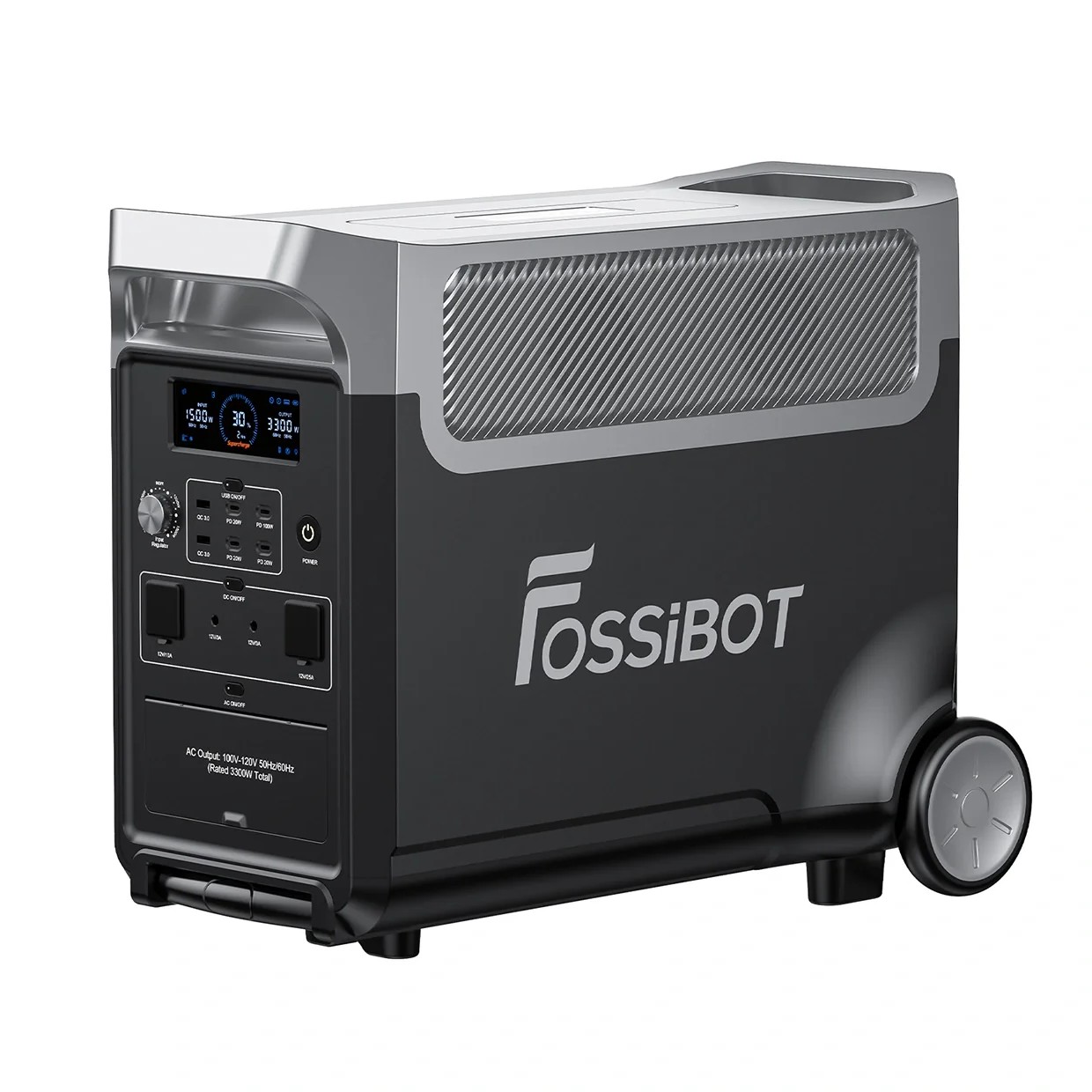

In terms of powering devices, the F3600 provides a versatile set of outputs: 3 x AC Outlets, 1 x 100W PD USB-C Port, 3 x 20W PD USB-C Ports, 2 x 18W QC3.0 USB-A Ports, 1 x 12V/10A Cigarette Lighter Socket, 1 x 12V/25A XT-60 RV Outlet, and 2 x 12V/3A DC5521 Outputs (all regulated).

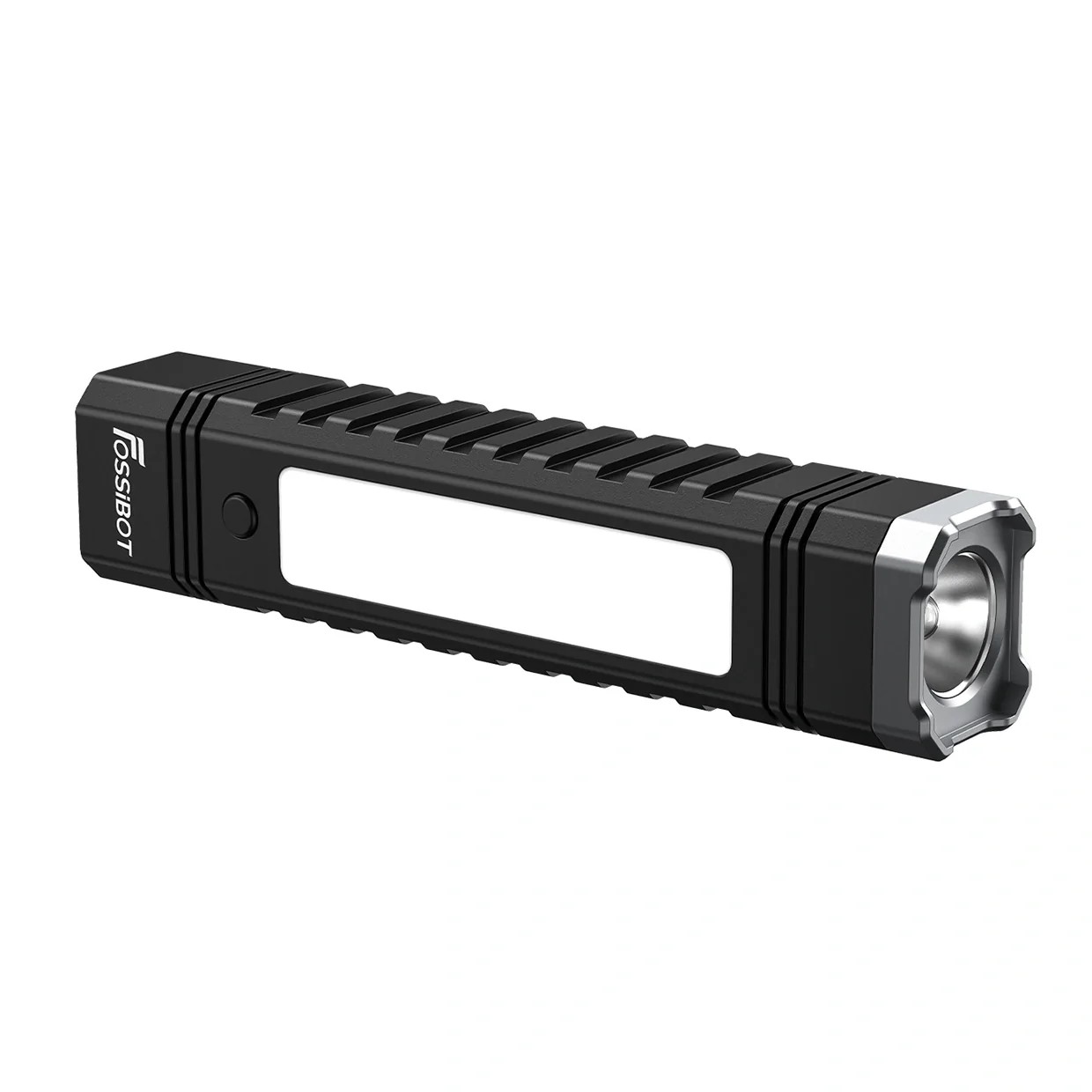

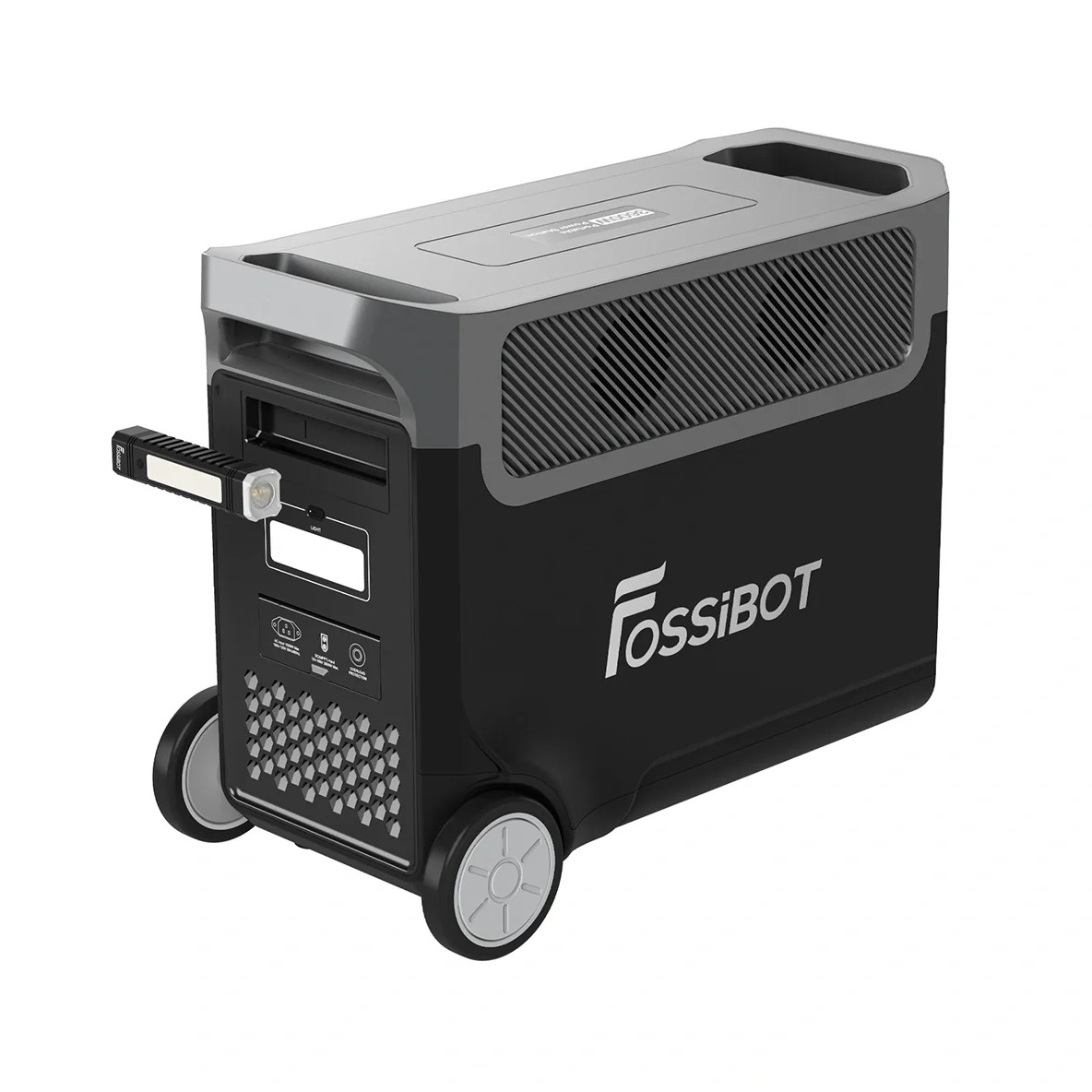

The F3600 comes equipped with a built-in 3W adjustable LED light for illumination. It also includes a convenient magnetic flashlight for added utility. The power input features an adjustable knob, allowing you to manage the charging speed based on your needs. For safety and compliance, the unit is UL Standard, CEC, DO, FCC, and CA Prop 65 certified.
The package includes the FOSSiBOT F3600 unit itself, along with an AC charging cable, an XT90 solar charging cable, a car charging cable, a portable flashlight, user manuals, a cable storage bag, and a leather handle sheath.
The manufacturer provides a 24-month warranty for the product. By reviewing these specifications, you can determine if the FOSSiBOT F3600, with its increased capacity, faster charging, and additional features, is the right portable power station to meet your demanding off-grid power needs
Full Specifications
General Info
| Launch This refers to the date when this device was officially introduced into the market. | 2023, February / 2023 March |
| Brand / Model These are key identifiers that indicate the manufacturer or company that produces this smartphone, and the specific model of the phone. | FOSSiBOT / F3600 |
| Dimensions / Weight: This refers to the physical size and weight of the device, measured in millimeter (mm) and grams (g) respectively. | 60.90 x 32.10 x 47.55 cm / 92.59 lbs or (42KG) |
| Temperature The temperature in a mobile power station or power bank refers to the level of thermal energy present within the device during its operation. It's typically measured in degrees Celsius (°C) or Fahrenheit (°F) and indicates how hot or cold the internal components of the power bank are during usage. | -15 to 40℃ or (-4 to 104℉) |
Battery Details
| Battery Type In portable power stations, battery type refers to the specific chemical technology used to store electrical energy. This choice significantly impacts factors like the weight, lifespan, safety, and charging speed of the station | LiFePO4 (Lithium Iron Phosphate) |
| Battery Capacity Battery capacity in a portable power station refers to the total amount of electrical energy it can store, measured in watt-hours (Wh). It essentially tells you how long the station can power your devices. | 3,840Wh (48V，80Ah) |
| Lifecycle This indicates the number of times you can completely discharge and recharge the battery (one cycle) before it loses 20% of its original capacity. In simpler terms, this tells you how many times you can use and recharge the station before it becomes noticeably less powerful. | 6,500+ Cycles to 80% Original Capacity |
| Shelf-Life This refers to how long the battery can maintain its charge when not in use. Over time, even if the station isn't being used, the battery will slowly lose its charge. This specification tells you how often you need to recharge the station even if it's just sitting in storage or on the shelf. | Recharge to above 50% Every 3 Months |
| Management System This refers to all measures put in place to ensure the optimal performance and safety of your Portable Power Station. |
Power input adjustable knob MPPT Charge Controller, BMS, - Load / Voltage Monitoring - Charging Monitoring - Temperature monitoring |
Charging Info.
| Charging Type (Input Option) In portable power stations, charging type refers to the methods available to recharge the battery. |
AC Input: up 1500W - Solar Input: up 2000W Max. - Car Input: up 200W from Cigarette Lighter Port |
| AC Charging Time AC charging time for a portable power station refers to the time it takes to recharge the station from a standard AC wall outlet. | 3 hours |
| Solar Charging Time Solar charging time for a portable power station refers to the amount of time it takes to recharge the station's battery using a solar panel. | 2 hours 30 minutes (Prime sunshine) |
| AC + Solar Charging Time AC + Solar Charging time refers to the time it will take when both AC wall outlet and a Solar panel is combined to recharge your Portable Power Station. | Supported; 3500W max: 1 hour 50 minutes |
| Car Charging Time Car charging time for a portable power station refers to the amount of time it takes to recharge the station's battery using the cigarette lighter outlet (also known as a 12V DC outlet) in your car. | 32 hours@12V, or 16 hours 30 minutes @24V |
Output Options
| Total Output Power This represents the maximum continuous power (measured in watts) that the portable station can deliver to your devices at any given time. It essentially tells you the total amount of power available for running your appliances simultaneously. | 3,868W |
| Inverter Type This refers to the type of electrical current the station generates through a process called inversion (converting DC battery power to AC power). There are two main types: Pure Sine Wave or Modified Sine Wave. | Pure Sine Wave |
| Surge Power This indicates the maximum short-term surge of power (measured in watts) that the station can handle for a brief period (usually a few milliseconds). This can be helpful for starting up devices with high initial power demands, such as motors in refrigerators or power tools. | 6,600W |
| AC Outlets These are the standard AC (alternating current) outlets that you'd use to plug in your devices with AC power cords. | 3 X AC Outlets |
| USB Ports These are the USB ports available for charging various devices using USB-C or USB-A cables. |
1x PD100W - USB Type-C 3x PD20W - USB Type-C 2x (QC3.0)18W - USB Type-A |
| Cigarette Lighter Sockets This is a 12V DC (direct current) outlet similar to the cigarette lighter socket found in your car. It allows you to power 12V DC appliances, such as car chargers, portable coolers, or some lights. | 1 x 12V/10A (Car Outlet) |
| LED light An LED light, in the context of a portable power station, refers to a built-in light source that uses light-emitting diodes (LEDs) for illumination. These lights are typically small, energy-efficient, and durable. |
Yes; 3W adjust light - Added magnetic flashlight |
| DC Outlets DC outlets in a portable power station are ports that provide direct current (DC) electricity, typically at 12 volts. This is different from the standard AC (alternating current) outlets that you'd find in your house. |
1 x 12V/25A (XT-60 RV Outlet) 2 x 12V/3A DC5521 (5.5mm Outlet) *All Regulated. |
Miscellaneous
| Box Contents This section refers to all the items, tools, accessories, and cables contained in the box. |
FOSSiBOT F3600 - AC Charge Cable - XT90 Solar Charging Cable - Car charging cable - Portable flash light - User Manuals - Cable storage bag - Leather handle sheath |
| Warranty A warranty on a portable power station refers to a guarantee provided by the manufacturer that the product will be free from defects in materials and workmanship for a specified period of time. | 24 Months |
| Color Options In the context of portable power stations, "Color Option" most likely refer to the variety of colors the station itself comes in. | Black |
| Others This is a catch-all category that includes various additional features, specifications, or capabilities that don't fall under the major categories like display, camera, memory, or connectivity. |
Leather handle sheath - Industrial wheels - Cable storage bag - Suitcase extendable handle |
Disclaimer Note:
These specifications were entered manually, hence we CANNOT guarantee 100% accuracy. Also, that your device is listed on this website DOES NOT call for reckless usage! It is crucial to exercise due diligence, as we cannot be held responsible for any damage to your device due to overconfidence in it built quality.
