Hammer Construction 2 Thermal 5G

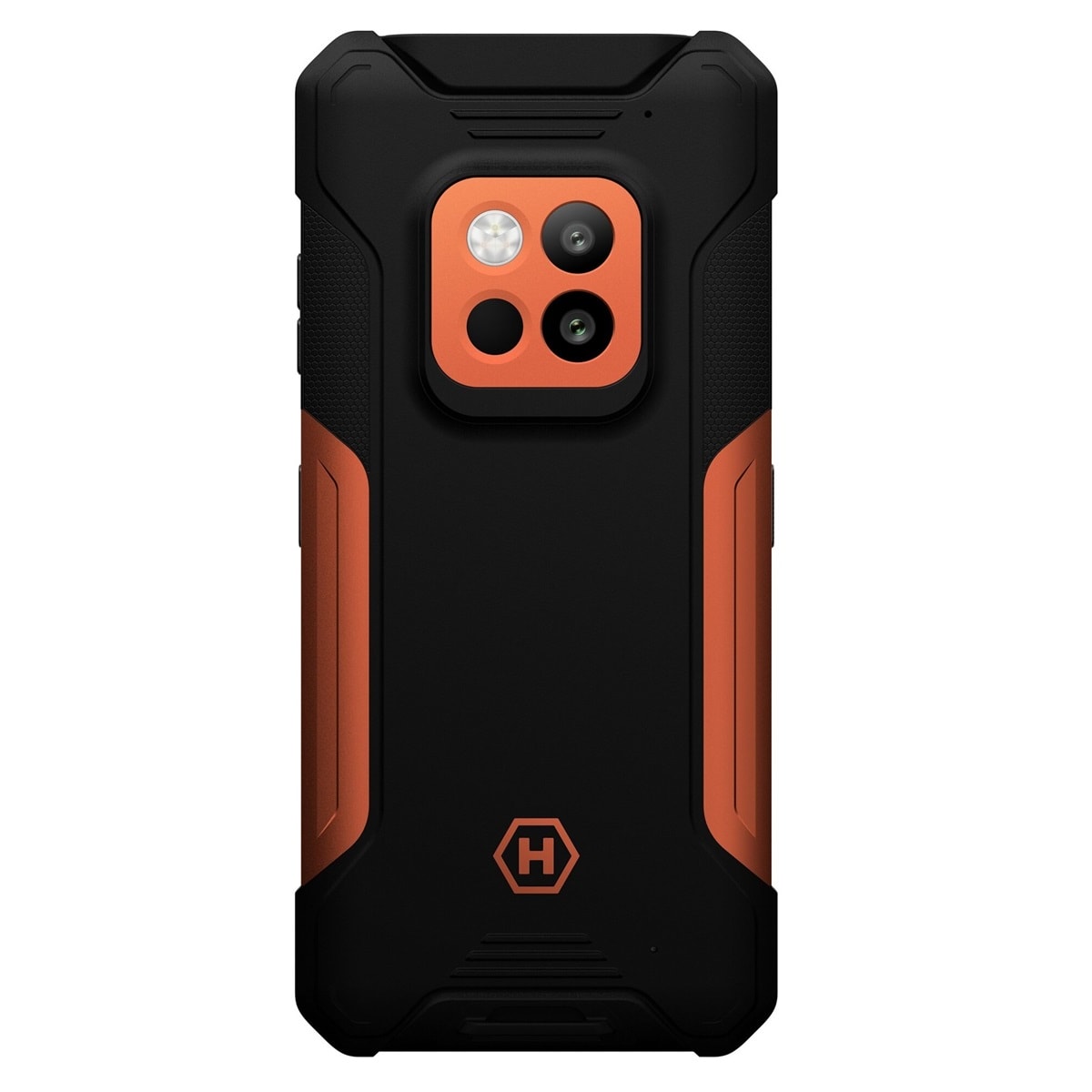

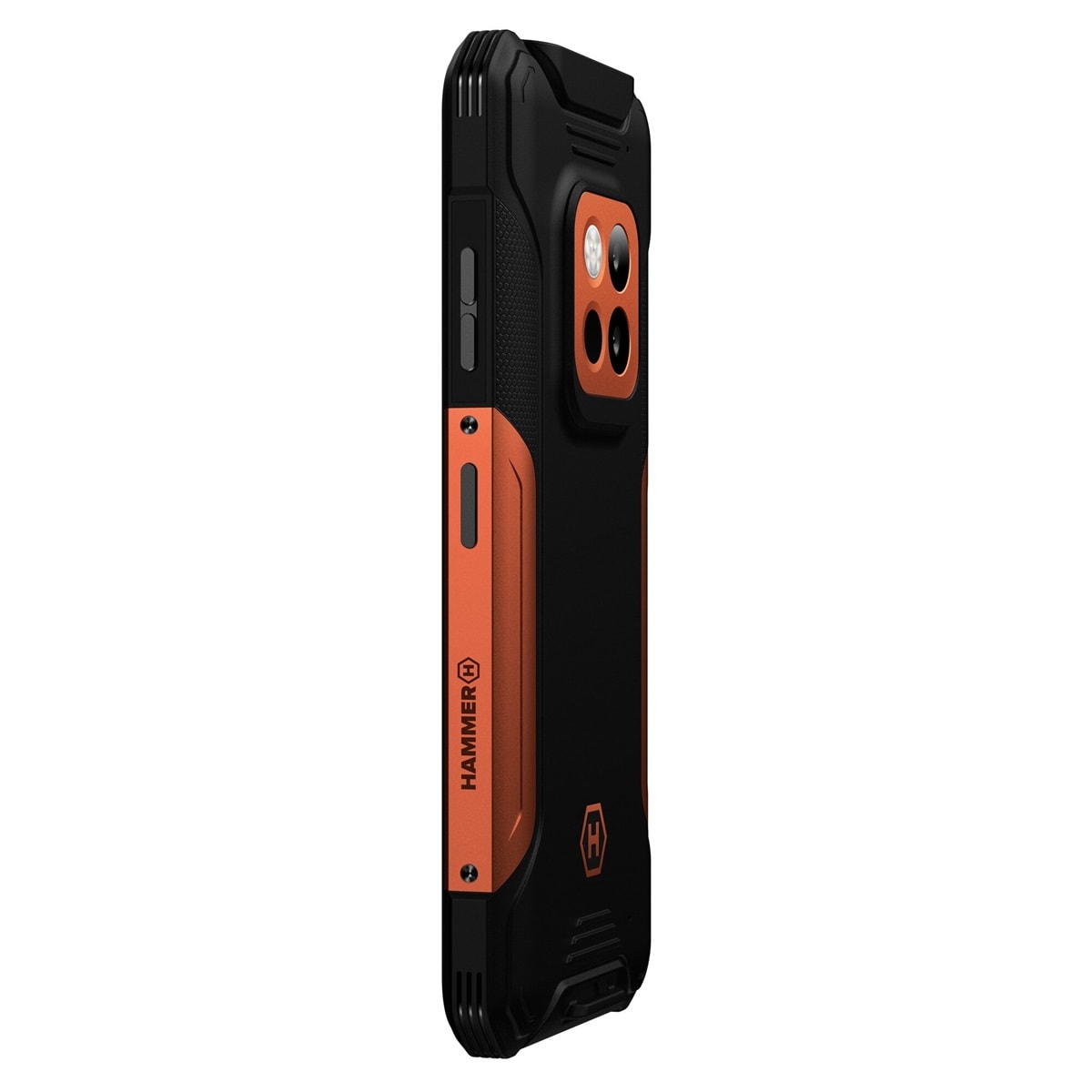

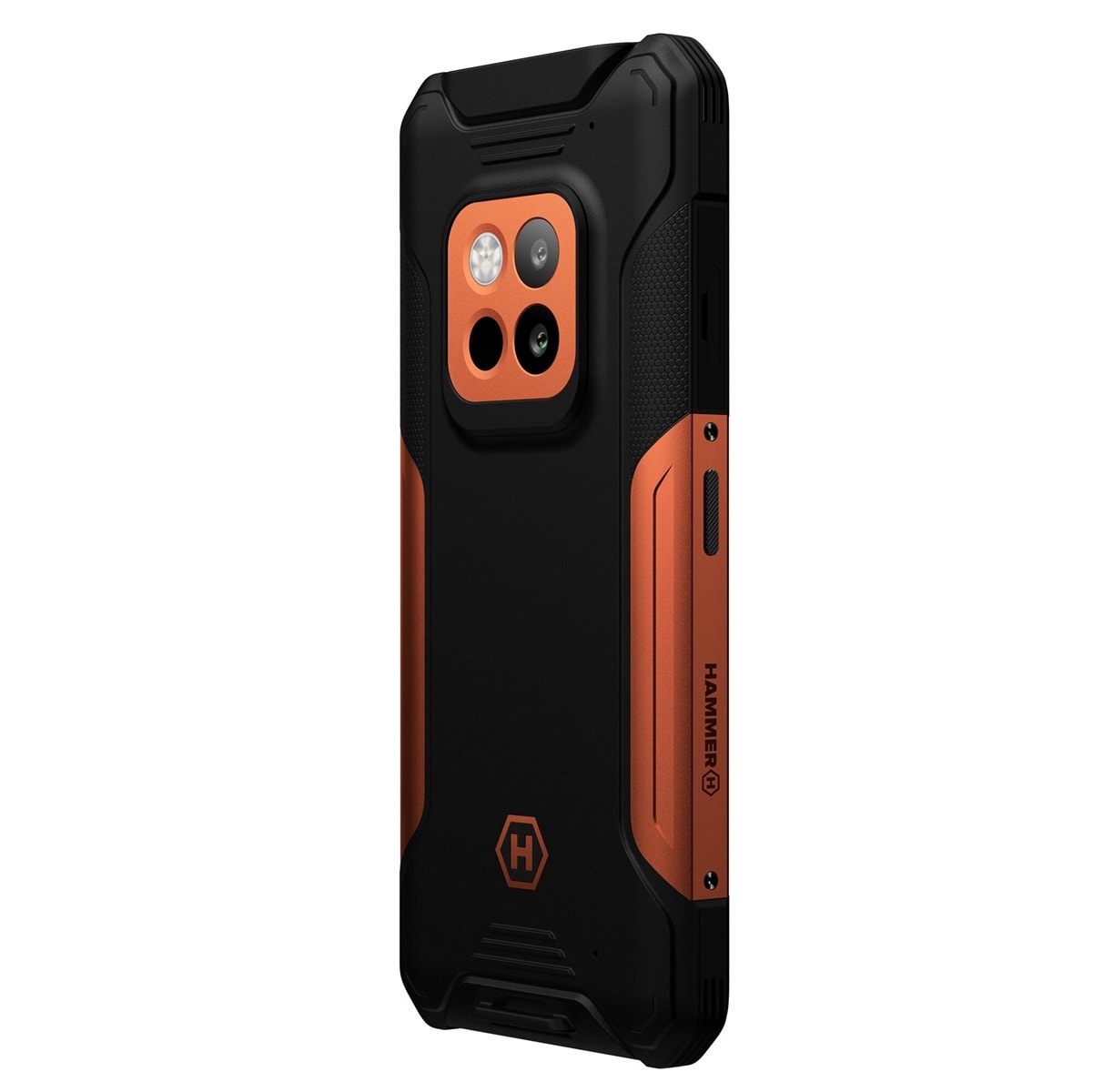

This is the Hammer Construction 2 Thermal 5G, a rugged outdoor smartphone equipped with advanced thermal imaging capabilities. It retains the robust design of its sibling, the Construction 2 5G, with an IP69K rating and MIL-STD-810H certification, ensuring resistance to dust, water up to 20 meters for 30 minutes, and drops from 1.5 meters.
The Construction 2 Thermal 5G features a 6.58-inch IPS touch screen with a 1080 x 2408 pixel resolution and a 120Hz refresh rate. It operates on Google Android 14 and is powered by the Mediatek Dimensity 6300 chipset, with an octa-core processor and Mali-G57 MC2 GPU.
The Thermal Edition differs from the standard Construction 2 5G with its enhanced camera capabilities: a 108MP main camera, an 8MP ultrawide camera, and a thermal lens with 160×120 pixel resolution by Flir. The selfie camera is also upgraded to 32MP from 8MP.
The device includes 8GB of RAM and 256GB of internal storage, expandable up to 1TB via an SD card. Both models support multiple 4G and 5G bands, Bluetooth 5.3, dual-band WiFi, NFC, and have a USB Type-C port.
The Thermal Edition, like its predecessor, is equipped with a 6500mAh battery, supporting 33W fast charging and 15W wireless charging which is absent on the non-thermal model. The phone is available in Red and also includes a built-in laser range finder.
Full Specifications
Details
| Launch This refers to the date when this device was officially introduced into the market. | Announced 2024, October / Released 2024, October |
| Brand / Model These are key identifiers that indicate the manufacturer or company that produces this smartphone, and the specific model of the phone. | Hammer / Construction 2 Thermal 5G |
Network Technology
| 2G Bands 2G refers to the second generation of cellular technology and includes various frequency bands for basic voice and text communication. |
GSM Band 850 / 900 / 1800 / 1900 - SIM 1 and SIM 2 - CDMA 800 / 1900 |
| 3G Bands 3G refers to the third generation of cellular technology, encompassing different frequency ranges for faster data speeds, mobile internet, and multimedia capabilities. |
HSDPA Band 800 / 900 / 1800 / 2100 / 2600 - CDMA2000 1x |
| 4G Bands 4G refers to the fourth generation of cellular technology, operating in specific frequency bands to provide significantly faster data speeds, supporting high-definition video streaming and advanced applications. | LTE Band 800 / 850 / 900 / 1800 / 2100 / 2300 / 2600 |
| 5G Bands 5G refers to the fifth generation of cellular technology, utilizing a wide range of frequency bands, including sub-6 GHz and millimeter wave, to deliver ultra-fast data speeds, low latency, and connectivity for innovations like IoT and augmented reality. | 5G Band n1 / n3 / n7 / n28 / n38 / n41 / n77 / n78 SA/NSA/Sub6 |
Body
| Ruggedity This indicates the device's durability and ability to withstand harsh conditions or impacts. It is a very popular term used with tough or rugged phones. IP68/IP69K are international ratings that measure a smartphone's resistance to dust and water. MIL-STD-810H is a military standard that sets criteria for the environmental and durability testing of electronic devices. It means this device has undergone various tests to demonstrate its resilience in challenging conditions, such as extreme temperatures, humidity, vibration, and shock. |
IP69K / MIL-STD-810H - Dust / Water resistant up to 20m for 30 min / drop-to-concrete resistance from 1.5m |
| Dimensions / Weight: This refers to the physical size and weight of the device, measured in millimeter (mm) and grams (g) respectively. | 172 x 80.6 x 13.6 mm / 306.6 grams |
| SIM SIM stands for "Subscriber Identity Module." It is a small card, typically inserted into a slot in a mobile phone, that contains important information for connecting the device to a mobile network. SIM cards can come in various sizes, including standard SIM, micro SIM, nano SIM, or even electronic (eSIM), depending on the phone's design. | Dual SIM (Nano-SIM, dual stand-by) |
Display
| Screen Display refers to the screen or visual interface of the device. It includes details such as screen size, resolution, and technology (e.g., LCD, OLED, AMOLED). | 6.58-inches / IPS touch screen / 120Hz refresh |
| Resolution Screen Resolution refers to the number of pixels that make up the display screen and is typically expressed as a combination of horizontal and vertical pixel counts (e.g., 1920 x 1080, 2560 x 1440, or 3840 x 2160). The screen resolution determines the level of detail and sharpness of the visual content displayed on the smartphone's screen. Higher resolutions generally result in crisper and more detailed images and text | 1080 x 2408 pixels / 20:9 aspect ratio / 401 PPI |
| Features Camera features encompass various functionalities and capabilities that enhance the device's photography and videography experience. These features can include Optical Image Stabilization (OIS) Panorama, HDR, Ai Mode, Night Mode, Portrait Mode, etc. | Scratch resistant glass (Corning Gorilla Glass 5) |
Platform
| OS This is the Operating System. It refers to the software platform that runs on the smartphone and manages the device's hardware and software resources. Common smartphone operating systems include Android (developed by Google), iOS (developed by Apple). | Google Android 14 |
| Chipset This refers to the integrated circuit that serves as the device's central processing unit (CPU). It plays a pivotal role in the smartphone's performance, speed, and energy efficiency. |
Mediatek Dimensity 6300 (6 nm) - Octa-core (2x2.4 GHz Cortex-A76 & 6x2.0 GHz Cortex-A55) - Mali-G57 MC2 GPU |
| Memory This encompasses two components: storage capacity and RAM (Random Access Memory). Storage capacity, typically measured in gigabytes (GB) or terabytes (TB), dictates how much internal space is available for apps, files, and media storage. RAM, measured in gigabytes (GB), is temporary memory crucial for multitasking and app performance, with more RAM generally leading to smoother operation and faster task-switching capabilities. | 8GB RAM + 256GB ROM (UFS 2.2) / SD-card support up to 1TB (uses dedicated slot) |
Camera
| Main The main camera, also known as the rear camera, is the primary camera on the back of the smartphone. It is typically used for capturing photos and videos in various scenarios and is often the more powerful and versatile camera on the device |
Dual camera: - Main: 108MP, PDAF - Ultrawide: 8MP - Thermal Lens: 160x120px by Flir |
| Selfie The selfie camera, also known as the front-facing camera, is the camera on the front of the smartphone, primarily used for capturing selfies and video calls | 32MP selfie camera, No LED flash |
| Features Camera features encompass various functionalities and capabilities that enhance the device's photography and videography experience. These features can include Optical Image Stabilization (OIS) Panorama, HDR, Ai Mode, Night Mode, Portrait Mode, etc. | 1080p@30fps video recording / LED Flash |
Communications
| Connectivity This encompasses the device's ability to connect and communicate with other devices and networks. It includes features such as cellular connectivity, Wi-Fi, Bluetooth, NFC (Near Field Communication), and USB connectivity options. | Bluetooth 5.3 A2DP / WiFi 2.4G-5G / USB Type-C / NFC |
| Navigation Navigation refers to the device's ability to determine and display location information and provide directions to users. This functionality is usually powered by Global Positioning System (GPS) technology. | A-GPS (HD L1+L5), GLONASS, BeiDou |
| Sensors This refers to the various built-in sensors that enable the device to gather information from its environment and interactions. Common sensors found in rugged smartphones may include fingerprint sensor, light sensor, barometer sensor among others. | Fingerprint scanner (side), accelerometer, proximity |
Battery and Others
| Battery This section refers to the device's power source and its related specifications. This typically includes details such as the battery capacity, measured in milliampere-hours (mAh) or watt-hours (Wh), and it charging details. |
Li-Po 6500mAh, non-removable - 33W fast charging - 15W wireless charging |
| Others This is a catch-all category that includes various additional features, specifications, or capabilities that don't fall under the major categories like display, camera, memory, or connectivity. |
Color: Black Built-in laser range finder |
Disclaimer Note:
These specifications were entered manually, hence we CANNOT guarantee 100% accuracy. Also, that your device is listed on this website DOES NOT call for reckless usage! It is crucial to exercise due diligence, as we cannot be held responsible for any damage to your device due to overconfidence in it built quality.
