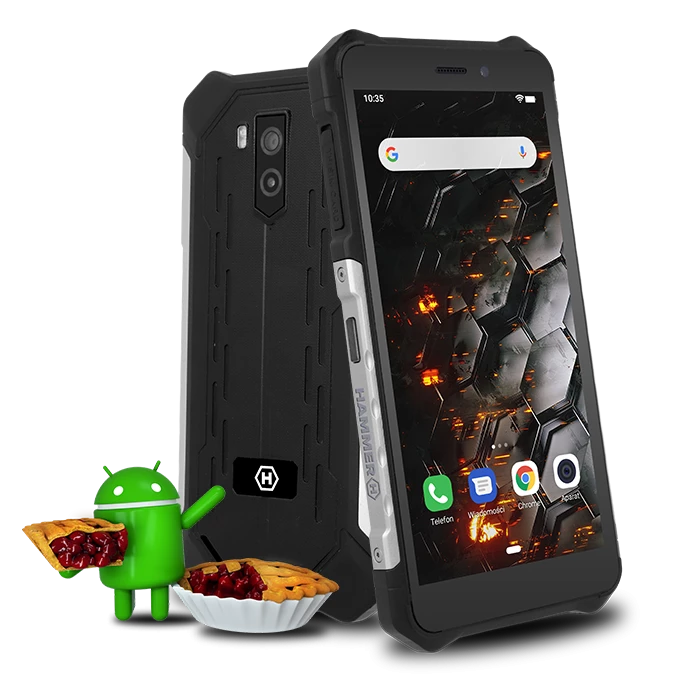

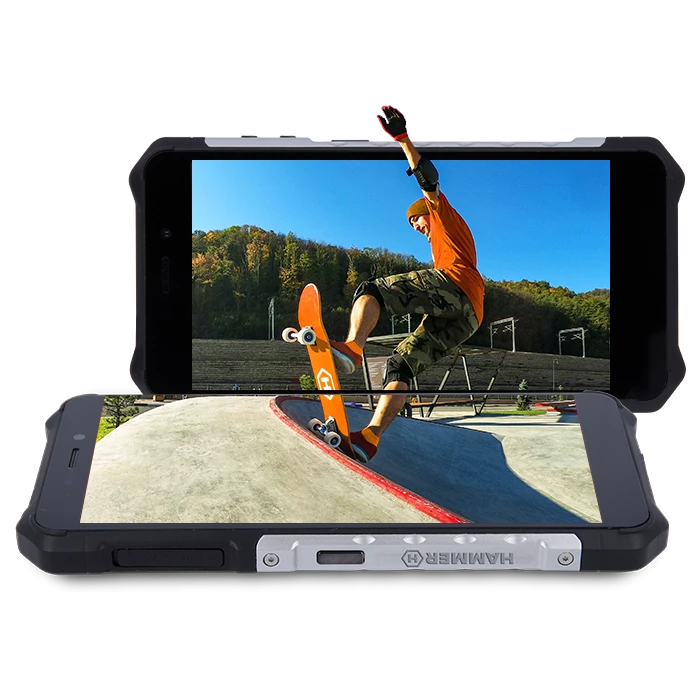

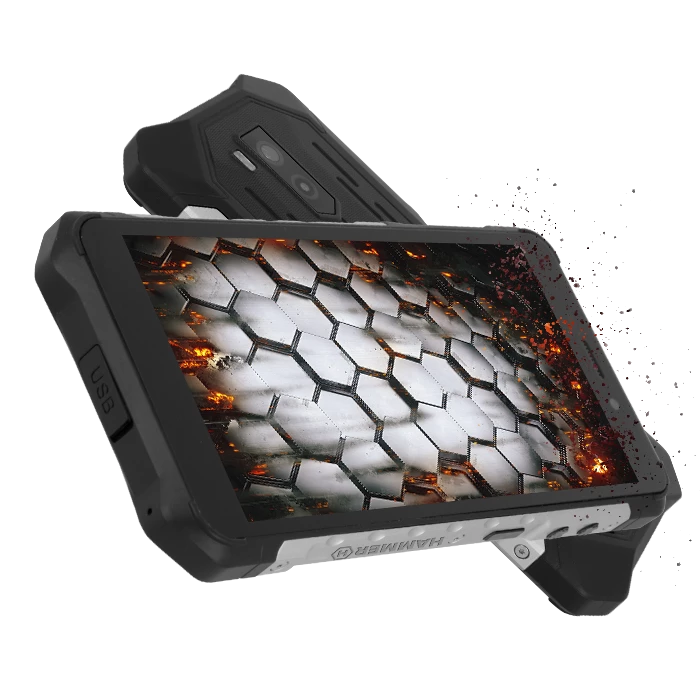

Hammer Iron 3
The Hammer Iron 3 is a 3G rugged smartphone designed for those who need a reliable phone that can withstand tough environments. It boasts an IP68 rating, making it resistant to dust, water submersion, and drops of up to 1 meter onto concrete. The phone measures 158 x 77.4 x 13.85 mm and weighs 234 grams, offering a comfortable size with a bit of added heft due to its rugged construction.
The Iron 3 features a larger 5.5-inch IPS LCD touchscreen display compared to other Hammer BS21. The display offers a sharp resolution of 720 x 1440 pixels with an 18:9 aspect ratio for an immersive viewing experience. The display is protected by a scratch-resistant glass for added durability.
The phone runs on a lightweight version of the Android operating system, Android 9.0 (Go Edition), optimized for performance on devices with lower specifications. It’s powered by a MediaTek MT6580 quad-core processor clocked at 1.3GHz and backed by Mali 400 MP2 GPU. It comes with 1GB of RAM and 16GB of internal storage, expandable via a microSD card (uses SIM 2 slot) for additional storage needs.
On the back, the Iron 3 features a dual-camera system with an 8MP main sensor and a secondary 0.3MP sensor. The main camera boasts Phase-Detection Autofocus (PDAF) for capturing sharper photos. There’s also a 5MP front-facing camera for selfies and video calls, although it lacks an LED flash. The rear camera can record videos in 720p resolution at 30 frames per second, and an LED flash is available on the back for low-light situations.
Connectivity options include Bluetooth 4.0 for headsets, WiFi for internet access, FM radio for entertainment, and a micro USB port for charging and data transfer. The Hammer Iron 3 also supports navigation using A-GPS, GLONASS, and BeiDou satellite systems.
The built-in sensors include an accelerometer and proximity sensor for basic functionalities. A 4400mAh Li-Po battery provides long-lasting power, and it’s non-removable. The Hammer Iron 3 comes in two color options: silver and orange.
Full Specifications
Details
| Launch This refers to the date when this device was officially introduced into the market. | Announced 2021, May / Released 2021, May |
| Brand / Model These are key identifiers that indicate the manufacturer or company that produces this smartphone, and the specific model of the phone. | Hammer / Iron 3 |
Network Technology
| 2G Bands 2G refers to the second generation of cellular technology and includes various frequency bands for basic voice and text communication. |
850 / 900 / 1800 / 1900 - SIM 1 and SIM 2 - CDMA 800 / 1900 |
| 3G Bands 3G refers to the third generation of cellular technology, encompassing different frequency ranges for faster data speeds, mobile internet, and multimedia capabilities. | 3G Bands 900 / 2100 |
| 4G Bands 4G refers to the fourth generation of cellular technology, operating in specific frequency bands to provide significantly faster data speeds, supporting high-definition video streaming and advanced applications. | No |
Body
| Ruggedity This indicates the device's durability and ability to withstand harsh conditions or impacts. It is a very popular term used with tough or rugged phones. IP68/IP69K are international ratings that measure a smartphone's resistance to dust and water. MIL-STD-810H is a military standard that sets criteria for the environmental and durability testing of electronic devices. It means this device has undergone various tests to demonstrate its resilience in challenging conditions, such as extreme temperatures, humidity, vibration, and shock. |
IP68 - Water / dust resistant / drop-to-concrete resistance up to 1m |
| Dimensions / Weight: This refers to the physical size and weight of the device, measured in millimeter (mm) and grams (g) respectively. | 158 x 77.4 x 13.85 mm / 234 grams |
| SIM SIM stands for "Subscriber Identity Module." It is a small card, typically inserted into a slot in a mobile phone, that contains important information for connecting the device to a mobile network. SIM cards can come in various sizes, including standard SIM, micro SIM, nano SIM, or even electronic (eSIM), depending on the phone's design. | Hybrid Dual SIM (Nano-SIM, dual stand-by) |
Display
| Screen Display refers to the screen or visual interface of the device. It includes details such as screen size, resolution, and technology (e.g., LCD, OLED, AMOLED). | 5.5-inches / IPS LCD touch screen |
| Resolution Screen Resolution refers to the number of pixels that make up the display screen and is typically expressed as a combination of horizontal and vertical pixel counts (e.g., 1920 x 1080, 2560 x 1440, or 3840 x 2160). The screen resolution determines the level of detail and sharpness of the visual content displayed on the smartphone's screen. Higher resolutions generally result in crisper and more detailed images and text | 720 x 1440 pixels / 18:9 aspect ratio / 296 PPI |
| Features Camera features encompass various functionalities and capabilities that enhance the device's photography and videography experience. These features can include Optical Image Stabilization (OIS) Panorama, HDR, Ai Mode, Night Mode, Portrait Mode, etc. | Scratch resistant glass |
Platform
| OS This is the Operating System. It refers to the software platform that runs on the smartphone and manages the device's hardware and software resources. Common smartphone operating systems include Android (developed by Google), iOS (developed by Apple). | Google Android 9.0 (Go Edition) |
| Chipset This refers to the integrated circuit that serves as the device's central processing unit (CPU). It plays a pivotal role in the smartphone's performance, speed, and energy efficiency. |
MediaTek MT6580 - Quad-core 1.3GHz Cortex-A7 - Mali 400 MP2 GPU |
| Memory This encompasses two components: storage capacity and RAM (Random Access Memory). Storage capacity, typically measured in gigabytes (GB) or terabytes (TB), dictates how much internal space is available for apps, files, and media storage. RAM, measured in gigabytes (GB), is temporary memory crucial for multitasking and app performance, with more RAM generally leading to smoother operation and faster task-switching capabilities. | 1GB RAM + 16GB ROM / SD-card support (uses SIM 2 slot) |
Camera
| Main The main camera, also known as the rear camera, is the primary camera on the back of the smartphone. It is typically used for capturing photos and videos in various scenarios and is often the more powerful and versatile camera on the device | 8MP + 0.3MP rear camera with PDAF |
| Selfie The selfie camera, also known as the front-facing camera, is the camera on the front of the smartphone, primarily used for capturing selfies and video calls | 5MP selfie camera (fixed focus), No LED flash |
| Features Camera features encompass various functionalities and capabilities that enhance the device's photography and videography experience. These features can include Optical Image Stabilization (OIS) Panorama, HDR, Ai Mode, Night Mode, Portrait Mode, etc. | 720p@30fps video recording / LED Flash |
Communications
| Connectivity This encompasses the device's ability to connect and communicate with other devices and networks. It includes features such as cellular connectivity, Wi-Fi, Bluetooth, NFC (Near Field Communication), and USB connectivity options. | Bluetooth 4.0 A2DP / WiFi 2.4G-5G / FM Radio / USB 2.0 |
| Navigation Navigation refers to the device's ability to determine and display location information and provide directions to users. This functionality is usually powered by Global Positioning System (GPS) technology. | A-GPS, GLONASS, BeiDou |
| Sensors This refers to the various built-in sensors that enable the device to gather information from its environment and interactions. Common sensors found in rugged smartphones may include fingerprint sensor, light sensor, barometer sensor among others. | Accelerometer, proximity |
Battery and Others
| Battery This section refers to the device's power source and its related specifications. This typically includes details such as the battery capacity, measured in milliampere-hours (mAh) or watt-hours (Wh), and it charging details. | Li-Po 4400mAh, non-removable |
| Others This is a catch-all category that includes various additional features, specifications, or capabilities that don't fall under the major categories like display, camera, memory, or connectivity. | Silver and Orange color |
Disclaimer Note:
These specifications were entered manually, hence we CANNOT guarantee 100% accuracy. Also, that your device is listed on this website DOES NOT call for reckless usage! It is crucial to exercise due diligence, as we cannot be held responsible for any damage to your device due to overconfidence in it built quality.
