JCB Toughphone Max
The JCB Toughphone Max is the higher and pricier option compared to the standard JCB Toughphone. While the standard model supports only 4G, the Max model extends with 5G network capabilities. The JCB Toughphone Max runs on Android 12 and is powered by a Mediatek Dimensity 700 chipset along with Mali-G57 MC2 GPU.

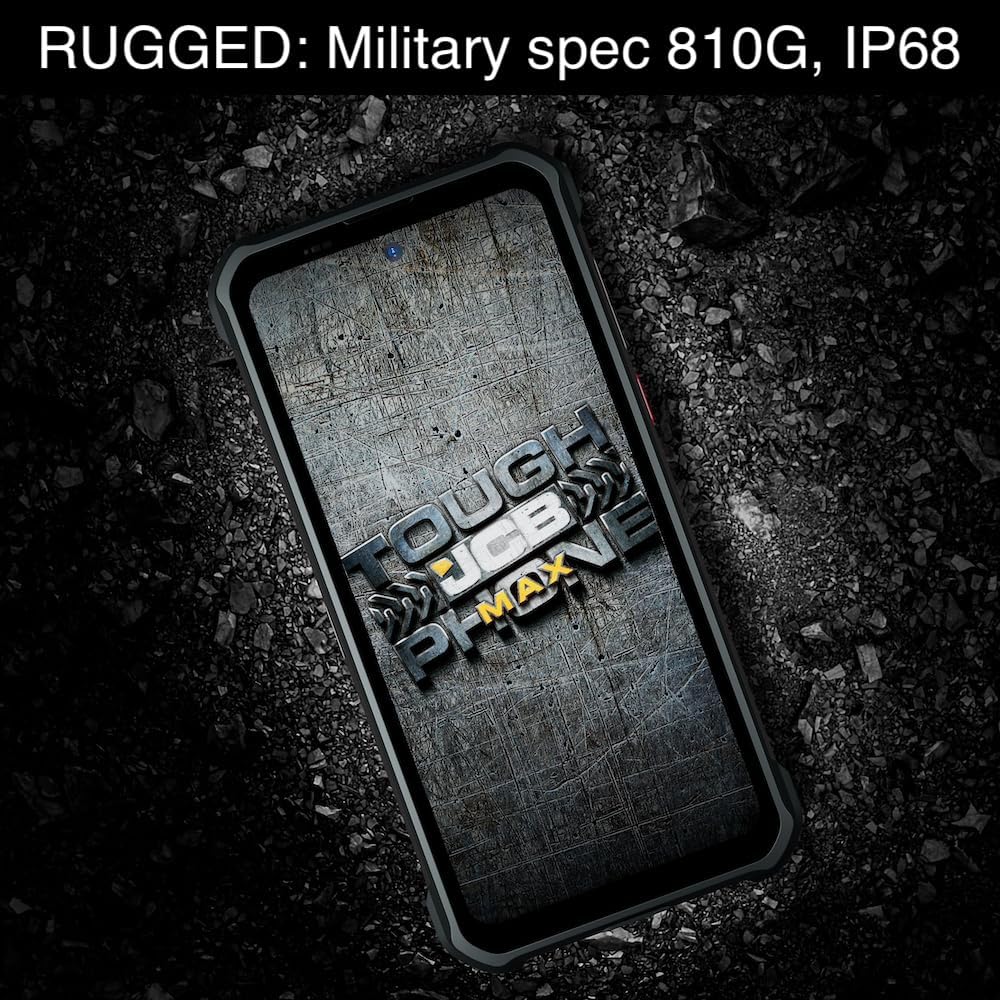

The device features IP68 and MIL-STD-810G certifications for dust, and drop resistance up to 1.8 meters. It measures 180 x 89 x 20 mm and weighs 421 grams, which is notably due to the large 12200mAh battery on the inside.
The display of the Toughphone Max is a 6.67-inch IPS touchscreen with a resolution of 1080 x 2400 pixels and a 19.5:9 aspect ratio. It is protected by Corning Gorilla Glass 3. This is a significant upgrade from the 5.71-inch screen of the standard model.

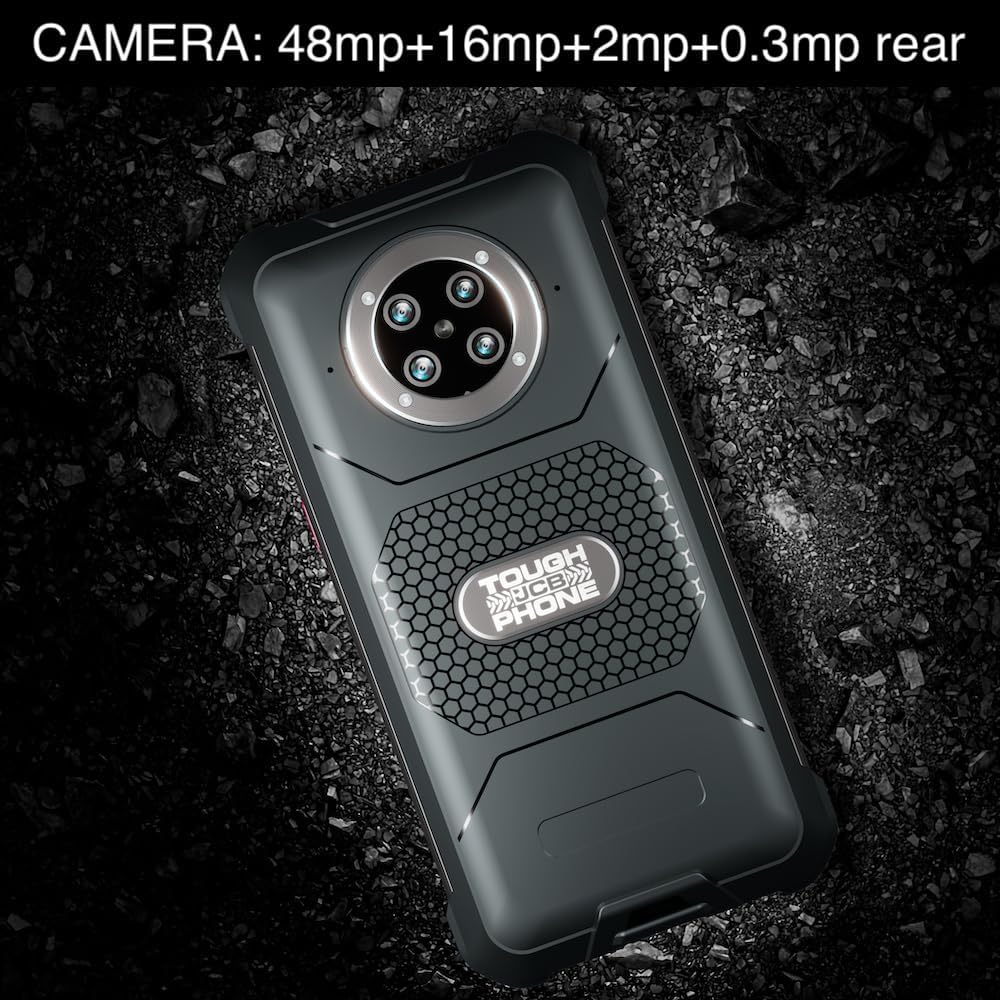

The JCB Toughphone Max comes with 8GB of RAM and 256GB of internal storage. The camera setup on the Max model includes a 48MP main camera, a 16MP ultrawide lens, a 2MP macro lens, and a 0.3MP depth sensor. The front camera system is a 20MP selfie shooter.
Connectivity options include NFC, dual-band Wi-Fi, Bluetooth 5.0, FM radio, and a USB Type-C 2.0 port. Navigation is supported by A-GPS, GLONASS, and BeiDou. Additional features include an accelerometer, proximity sensor, light sensor, and a Push-To-Talk (PPT) button.
Full Specifications
Details
| Launch This refers to the date when this device was officially introduced into the market. | 2023, June / Released 2023, June |
| Brand / Model These are key identifiers that indicate the manufacturer or company that produces this smartphone, and the specific model of the phone. | JCB / Toughphone Max |
Network Technology
| 2G Bands 2G refers to the second generation of cellular technology and includes various frequency bands for basic voice and text communication. | 2(1900), 3(1800), 5(850), 8(900) |
| 3G Bands 3G refers to the third generation of cellular technology, encompassing different frequency ranges for faster data speeds, mobile internet, and multimedia capabilities. | Band 1, 5, 8, or Band 2, 4, 5 |
| 4G Bands 4G refers to the fourth generation of cellular technology, operating in specific frequency bands to provide significantly faster data speeds, supporting high-definition video streaming and advanced applications. | Band 1, 3, 7, 8, 20, |
| 5G Bands 5G refers to the fifth generation of cellular technology, utilizing a wide range of frequency bands, including sub-6 GHz and millimeter wave, to deliver ultra-fast data speeds, low latency, and connectivity for innovations like IoT and augmented reality. | 5G SA/NSA |
Body
| Ruggedity This indicates the device's durability and ability to withstand harsh conditions or impacts. It is a very popular term used with tough or rugged phones. IP68/IP69K are international ratings that measure a smartphone's resistance to dust and water. MIL-STD-810H is a military standard that sets criteria for the environmental and durability testing of electronic devices. It means this device has undergone various tests to demonstrate its resilience in challenging conditions, such as extreme temperatures, humidity, vibration, and shock. |
IP68 / MIL-STD-810G - Water / Dust / Drop Resistance 1.8m |
| Dimensions / Weight: This refers to the physical size and weight of the device, measured in millimeter (mm) and grams (g) respectively. | 180 x 89 x 20 mm / 421 grams |
| SIM SIM stands for "Subscriber Identity Module." It is a small card, typically inserted into a slot in a mobile phone, that contains important information for connecting the device to a mobile network. SIM cards can come in various sizes, including standard SIM, micro SIM, nano SIM, or even electronic (eSIM), depending on the phone's design. | Dual SIM (Nano-SIM, dual stand-by) |
Display
| Screen Display refers to the screen or visual interface of the device. It includes details such as screen size, resolution, and technology (e.g., LCD, OLED, AMOLED). | 6.67-inches FHD+ IPS touchscreen |
| Resolution Screen Resolution refers to the number of pixels that make up the display screen and is typically expressed as a combination of horizontal and vertical pixel counts (e.g., 1920 x 1080, 2560 x 1440, or 3840 x 2160). The screen resolution determines the level of detail and sharpness of the visual content displayed on the smartphone's screen. Higher resolutions generally result in crisper and more detailed images and text | 1080 x 2400 pixels / 403 PPI / 19.5:9 ratio |
| Features Camera features encompass various functionalities and capabilities that enhance the device's photography and videography experience. These features can include Optical Image Stabilization (OIS) Panorama, HDR, Ai Mode, Night Mode, Portrait Mode, etc. | Scratch resistant glass (Corning Gorilla Glass 3) |
Platform
| OS This is the Operating System. It refers to the software platform that runs on the smartphone and manages the device's hardware and software resources. Common smartphone operating systems include Android (developed by Google), iOS (developed by Apple). | Android 12 |
| Chipset This refers to the integrated circuit that serves as the device's central processing unit (CPU). It plays a pivotal role in the smartphone's performance, speed, and energy efficiency. |
Mediatek Dimensity 700 (7 nm) - 2x 2.2GHz Cortex-A765 and 6x 2.0GHz Cortex-A55 - Mali-G57 MC2 GPU |
| Memory This encompasses two components: storage capacity and RAM (Random Access Memory). Storage capacity, typically measured in gigabytes (GB) or terabytes (TB), dictates how much internal space is available for apps, files, and media storage. RAM, measured in gigabytes (GB), is temporary memory crucial for multitasking and app performance, with more RAM generally leading to smoother operation and faster task-switching capabilities. | 8GB RAM + 256GB ROM / (512GB SD-card - unconfirmed) |
Camera
| Main The main camera, also known as the rear camera, is the primary camera on the back of the smartphone. It is typically used for capturing photos and videos in various scenarios and is often the more powerful and versatile camera on the device |
Quad cameras: - Main: 48MP, F/1.8 - Ultrawide: 16MP - Macro: 2MP - Depth: 0.3MP |
| Selfie The selfie camera, also known as the front-facing camera, is the camera on the front of the smartphone, primarily used for capturing selfies and video calls | 20MP F/2.2 (no LED flash) |
| Features Camera features encompass various functionalities and capabilities that enhance the device's photography and videography experience. These features can include Optical Image Stabilization (OIS) Panorama, HDR, Ai Mode, Night Mode, Portrait Mode, etc. | Touch focus / PDAF / 1080p video recording |
Communications
| Connectivity This encompasses the device's ability to connect and communicate with other devices and networks. It includes features such as cellular connectivity, Wi-Fi, Bluetooth, NFC (Near Field Communication), and USB connectivity options. | NFC / Wi-Fi 2.4G,5G / Bluetooth 5.0 A2DP / NFC / FM Radio / Type-C v2.0 |
| Navigation Navigation refers to the device's ability to determine and display location information and provide directions to users. This functionality is usually powered by Global Positioning System (GPS) technology. | A-GPS, GLONASS, BeiDou |
| Sensors This refers to the various built-in sensors that enable the device to gather information from its environment and interactions. Common sensors found in rugged smartphones may include fingerprint sensor, light sensor, barometer sensor among others. |
Accelerometer, proximity, light - PPT Button |
Battery and Others
| Battery This section refers to the device's power source and its related specifications. This typically includes details such as the battery capacity, measured in milliampere-hours (mAh) or watt-hours (Wh), and it charging details. | Li-Po 12200mAh, Non-removable / Fast charging |
Disclaimer Note:
These specifications were entered manually, hence we CANNOT guarantee 100% accuracy. Also, that your device is listed on this website DOES NOT call for reckless usage! It is crucial to exercise due diligence, as we cannot be held responsible for any damage to your device due to overconfidence in it built quality.
