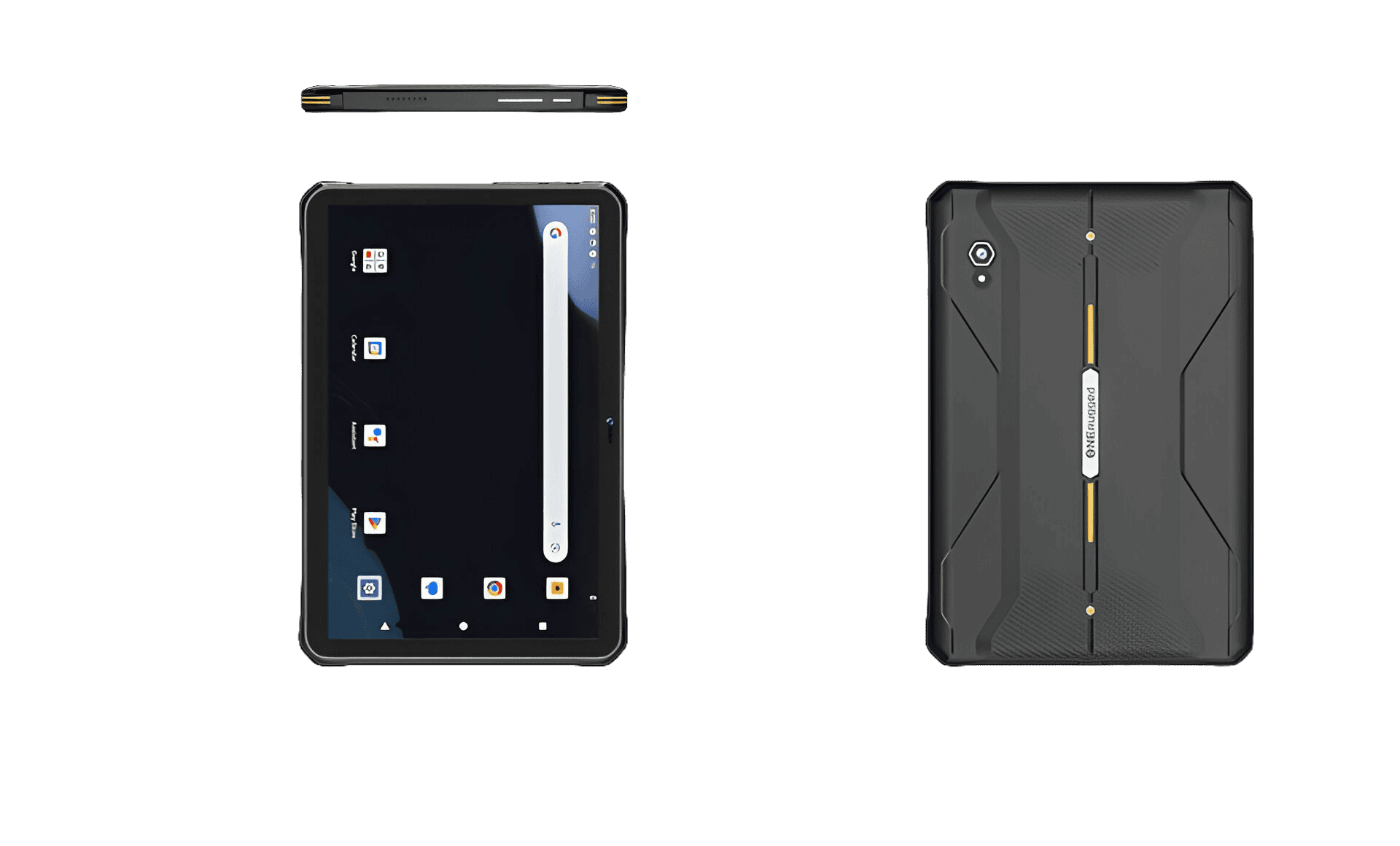

Onerugged T1 Max
The Onerugged T1 Max is the larger sibling to the vanilla T1, and it is designed for those who need a bigger screen instead of the compact sub 8-inches on the T1. The tablet supports 2G, 3G, and 4G networks and has a hybrid dual SIM slot for flexible use.
Like it little sibling, the T1 Max is water and dust resistant with IP68 and MIL-STD-810H ratings, ensuring it can withstand drops from up to 1.22 meters and operate in temperatures from -20°C to 60°C. The dimensions are 262.8 x 177.4 x 14.26 mm, making it larger and slightly thicker than the T1.
The Onerugged T1 Max features a 10.95-inch TFT LCD touchscreen with 16 million colors and a brightness of 450 nits. The resolution is 1200 x 1920 pixels, offering a clearer and more detailed display compared to the T1. The screen is protected by scratch-resistant Asahi Glass which has Moh hardness rating of up to 7h.
Just like the T1, the T1 Max is also powered by the MediaTek Helio G99 chipset, along with Mali-G57 MC2 GPU. It runs on Google Android 14 and comes with 6GB or 8GB of RAM and 128GB or 256GB of internal storage, expandable up to 512GB with an SD card.
The tablet has a 48MP main camera with PDAF and a 32MP front camera. It supports 1080p video recording at 30fps and includes an LED flash. Connectivity options include Bluetooth 5.1, Wi-Fi 6, FM Radio, and USB Type-C 2.0 with OTG support. Navigation is supported by A-GPS, GLONASS, BeiDou, and Galileo. Sensors include a G-Sensor, geomagnetic sensor, compass, gyroscope, and ambient light sensor.
The Onerugged T1 Max is powered by a larger 10,000mAh battery with 33W fast charging instead of the 8000mAh that comes with the smaller T1. It comes in a striking black and orange color and features four stereo speakers with a total output of 8W, providing a richer audio experience.
The Onerugged T1 Max is perfect for those who need a larger, more powerful tablet that can handle the toughest environments possible. The full specifications of the T1 Max are contained in the table below.
Full Specifications
Details
| Launch This refers to the date when this device was officially introduced into the market. | Announced 2024, September 28 / Released 2024, October |
| Brand / Model These are key identifiers that indicate the manufacturer or company that produces this smartphone, and the specific model of the phone. | Onerugged / T1 Max |
Network Technology
| 2G Bands 2G refers to the second generation of cellular technology and includes various frequency bands for basic voice and text communication. | GSM Band 850 / 900 / 1800 / 1900 - SIM 1 and SIM 2 |
| 3G Bands 3G refers to the third generation of cellular technology, encompassing different frequency ranges for faster data speeds, mobile internet, and multimedia capabilities. | 3G Bands 1 / 2 / 4 / 5 / 8 |
| 4G Bands 4G refers to the fourth generation of cellular technology, operating in specific frequency bands to provide significantly faster data speeds, supporting high-definition video streaming and advanced applications. | LTE Band 1/ 2 / 3 / 4 / 5 / 7 / 8 / 12 / 17 / 18 / 19 / 20 / 25 / 26 / 28A / 28B / 34 / 38 / 39 / 40 / 41 / 66 |
Body
| Ruggedity This indicates the device's durability and ability to withstand harsh conditions or impacts. It is a very popular term used with tough or rugged phones. IP68/IP69K are international ratings that measure a smartphone's resistance to dust and water. MIL-STD-810H is a military standard that sets criteria for the environmental and durability testing of electronic devices. It means this device has undergone various tests to demonstrate its resilience in challenging conditions, such as extreme temperatures, humidity, vibration, and shock. |
IP68 / MIL-STD-810H - Water / dust resistant - shock resistance from 1.22m - Usage temperature: -20 °C to 60 °C |
| Dimensions / Weight: This refers to the physical size and weight of the device, measured in millimeter (mm) and grams (g) respectively. | 262.8 x 177.4 x 14.26 mm / --- |
| SIM SIM stands for "Subscriber Identity Module." It is a small card, typically inserted into a slot in a mobile phone, that contains important information for connecting the device to a mobile network. SIM cards can come in various sizes, including standard SIM, micro SIM, nano SIM, or even electronic (eSIM), depending on the phone's design. | Hybrid Dual SIM (Nano-SIM, dual stand-by) |
Display
| Screen Display refers to the screen or visual interface of the device. It includes details such as screen size, resolution, and technology (e.g., LCD, OLED, AMOLED). | 10.95-inches / TFT LCD touchscreen / 16M colors / 450 nits |
| Resolution Screen Resolution refers to the number of pixels that make up the display screen and is typically expressed as a combination of horizontal and vertical pixel counts (e.g., 1920 x 1080, 2560 x 1440, or 3840 x 2160). The screen resolution determines the level of detail and sharpness of the visual content displayed on the smartphone's screen. Higher resolutions generally result in crisper and more detailed images and text | 1200 x 1920 pixels / 3:5 aspect ratio / 216 PPI |
| Features Camera features encompass various functionalities and capabilities that enhance the device's photography and videography experience. These features can include Optical Image Stabilization (OIS) Panorama, HDR, Ai Mode, Night Mode, Portrait Mode, etc. | Scratch resistant glass (Asahi Glass with above 7h Moh hardness rating) |
Platform
| OS This is the Operating System. It refers to the software platform that runs on the smartphone and manages the device's hardware and software resources. Common smartphone operating systems include Android (developed by Google), iOS (developed by Apple). | Google Android 14 |
| Chipset This refers to the integrated circuit that serves as the device's central processing unit (CPU). It plays a pivotal role in the smartphone's performance, speed, and energy efficiency. |
MediaTek (MT8781) Helio G99 (6 nm) - Octa-core (2x2.2 GHz Cortex-A76 & 6x2.0 GHz Cortex-A55) - Mali-G57 MC2 GPU |
| Memory This encompasses two components: storage capacity and RAM (Random Access Memory). Storage capacity, typically measured in gigabytes (GB) or terabytes (TB), dictates how much internal space is available for apps, files, and media storage. RAM, measured in gigabytes (GB), is temporary memory crucial for multitasking and app performance, with more RAM generally leading to smoother operation and faster task-switching capabilities. |
6/8GB RAM + 128/256GB ROM (LPDDT4x / UFS 2.2) - Expandable RAM: 8GB - SD-card support up to 512GB (uses SIM 2 slot) |
Camera
| Main The main camera, also known as the rear camera, is the primary camera on the back of the smartphone. It is typically used for capturing photos and videos in various scenarios and is often the more powerful and versatile camera on the device | Main: 48MP, PDAF |
| Selfie The selfie camera, also known as the front-facing camera, is the camera on the front of the smartphone, primarily used for capturing selfies and video calls | 32MP selfie, No LED flash |
| Features Camera features encompass various functionalities and capabilities that enhance the device's photography and videography experience. These features can include Optical Image Stabilization (OIS) Panorama, HDR, Ai Mode, Night Mode, Portrait Mode, etc. | 1080p@30fps video recording / LED Flash |
Communications
| Connectivity This encompasses the device's ability to connect and communicate with other devices and networks. It includes features such as cellular connectivity, Wi-Fi, Bluetooth, NFC (Near Field Communication), and USB connectivity options. | Bluetooth 5.1 A2DP / WiFi 2.4G-5G, Wi-Fi 6 / FM Radio / USB Type-C 2.0 (OTG) |
| Navigation Navigation refers to the device's ability to determine and display location information and provide directions to users. This functionality is usually powered by Global Positioning System (GPS) technology. | A-GPS, GLONASS, BeiDou, Galileo |
| Sensors This refers to the various built-in sensors that enable the device to gather information from its environment and interactions. Common sensors found in rugged smartphones may include fingerprint sensor, light sensor, barometer sensor among others. | G-Sensor, Geomagnetism, Compass sensor, Gyroscope, Ambient Light Sensor |
Battery and Others
| Battery This section refers to the device's power source and its related specifications. This typically includes details such as the battery capacity, measured in milliampere-hours (mAh) or watt-hours (Wh), and it charging details. | Li-Po 10,000mAh, non-removable with 33W fast charger |
| Others This is a catch-all category that includes various additional features, specifications, or capabilities that don't fall under the major categories like display, camera, memory, or connectivity. |
Color: Black + Orange Quad box speakers (2Wx4 = 8W) |
Disclaimer Note:
These specifications were entered manually, hence we CANNOT guarantee 100% accuracy. Also, that your device is listed on this website DOES NOT call for reckless usage! It is crucial to exercise due diligence, as we cannot be held responsible for any damage to your device due to overconfidence in it built quality.
