Oscal PowerMax 3600
The Oscal PowerMax 3600 (also known as the Blackview Oscal PowerMax 3600) is a portable power station designed for demanding off-grid use. It features a large capacity Lithium Iron Phosphate (LiFePO4) battery with a lifespan exceeding 3500 cycles (maintaining 80% of original capacity).
To maintain battery health, it’s recommended to recharge the unit above 50% every 3 months. A Battery Management System (BMS) monitors load, voltage, charging, and temperature for safety and longevity.

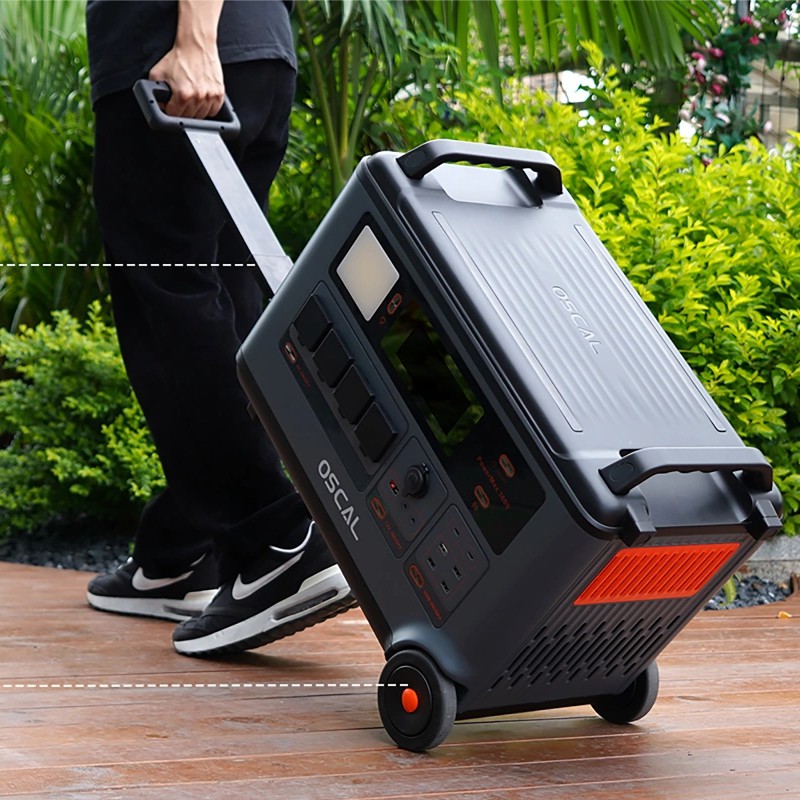

The unit boasts a splash and dustproof design, suitable for various environments. It can withstand a wide range of temperatures for storage, charging, and discharging. While larger than some portable stations, the PowerMax 3600 remains relatively portable with its included industrial wheels and extendable handle.
The PowerMax 3600 offers multiple charging methods with impressive speeds: AC input up to 2000W (full charge in 2 hours), solar input up to 1600W (depending on sunlight), and car input up to 120W. It also supports combining AC and solar charging for an even faster 1 hour and 12 minute recharge time.
The PowerMax 3600 delivers a total output power of 3600W with a pure sine wave inverter, ensuring compatibility with sensitive electronics. It can also handle brief power surges up to 7200W. The unit provides a comprehensive set of outputs, including AC outlets, USB ports (including fast-charging options), a cigarette lighter socket, an Anderson PowerPort, and DC5521 outputs.
An LED lamp is included for illumination. The PowerMax 3600 comes with a four-year warranty and is certified to meet various safety and compliance standards. The package includes the unit, AC charging cable, solar charging cable, car charging cable, user manuals, and the aforementioned transportation accessories. I have included the detailed specifications in the table below.
Full Specifications
General Info
| Launch This refers to the date when this device was officially introduced into the market. | 2023, December / 2024 January |
| Brand / Model These are key identifiers that indicate the manufacturer or company that produces this smartphone, and the specific model of the phone. |
Oscal / PowerMax 3600. - Also known as Blackview Oscal PowerMax 3600 |
| Dimensions / Weight: This refers to the physical size and weight of the device, measured in millimeter (mm) and grams (g) respectively. | 590 x 350 x 441 mm / 96.10 lbs. or (44.45kg) |
| Protection These refer to the measures and technologies used to safeguard the device's display from scratches, cracks, and damage. Common types of screen protection include Tempered Glass, Gorilla Glasses, IP Rating, etc. | Splash and Dust Proofed |
| Temperature The temperature in a mobile power station or power bank refers to the level of thermal energy present within the device during its operation. It's typically measured in degrees Celsius (°C) or Fahrenheit (°F) and indicates how hot or cold the internal components of the power bank are during usage. |
Storage: -10℃ to 45℃ or (14°F~113°F) - Charging: 0℃ to 50℃ or (32F to 122F) - Discharging: -20℃ to 55℃ or (-4F to 131F) |
Battery Details
| Battery Type In portable power stations, battery type refers to the specific chemical technology used to store electrical energy. This choice significantly impacts factors like the weight, lifespan, safety, and charging speed of the station | LiFePO4 (Lithium Iron Phosphate) |
| Battery Capacity Battery capacity in a portable power station refers to the total amount of electrical energy it can store, measured in watt-hours (Wh). It essentially tells you how long the station can power your devices. | 3,600Wh |
| Lifecycle This indicates the number of times you can completely discharge and recharge the battery (one cycle) before it loses 20% of its original capacity. In simpler terms, this tells you how many times you can use and recharge the station before it becomes noticeably less powerful. | 3500+ Cycles to 80% of Original Capacity |
| Shelf-Life This refers to how long the battery can maintain its charge when not in use. Over time, even if the station isn't being used, the battery will slowly lose its charge. This specification tells you how often you need to recharge the station even if it's just sitting in storage or on the shelf. | Recharge to above 50% Every 3 Months |
| Management System This refers to all measures put in place to ensure the optimal performance and safety of your Portable Power Station. |
T1 Chip integrated with BMS - Load / Voltage Monitoring - Charging Monitoring - Temperature monitoring |
Charging Info.
| Charging Type (Input Option) In portable power stations, charging type refers to the methods available to recharge the battery. |
AC Input: up 2000W - Solar Input: up 1600W Max. - Car Input: up 120W from Cigarette Lighter Port |
| AC Charging Time AC charging time for a portable power station refers to the time it takes to recharge the station from a standard AC wall outlet. | 2 hours |
| Solar Charging Time Solar charging time for a portable power station refers to the amount of time it takes to recharge the station's battery using a solar panel. | 2 hours 15 minutes (Prime sunshine) |
| AC + Solar Charging Time AC + Solar Charging time refers to the time it will take when both AC wall outlet and a Solar panel is combined to recharge your Portable Power Station. | Supported; 1 hour 12 minutes |
| Car Charging Time Car charging time for a portable power station refers to the amount of time it takes to recharge the station's battery using the cigarette lighter outlet (also known as a 12V DC outlet) in your car. | 30 hours |
Output Options
| Total Output Power This represents the maximum continuous power (measured in watts) that the portable station can deliver to your devices at any given time. It essentially tells you the total amount of power available for running your appliances simultaneously. | 3,600W |
| Inverter Type This refers to the type of electrical current the station generates through a process called inversion (converting DC battery power to AC power). There are two main types: Pure Sine Wave or Modified Sine Wave. | Pure Sine Wave |
| Surge Power This indicates the maximum short-term surge of power (measured in watts) that the station can handle for a brief period (usually a few milliseconds). This can be helpful for starting up devices with high initial power demands, such as motors in refrigerators or power tools. | 7,200W |
| AC Outlets These are the standard AC (alternating current) outlets that you'd use to plug in your devices with AC power cords. | 4 X AC Outlets |
| USB Ports These are the USB ports available for charging various devices using USB-C or USB-A cables. |
2x PD100W - USB Type-C 3x PD18W - USB Type-A 1x PD12W - USB Type-A |
| Cigarette Lighter Sockets This is a 12V DC (direct current) outlet similar to the cigarette lighter socket found in your car. It allows you to power 12V DC appliances, such as car chargers, portable coolers, or some lights. | 1 x Cigarette Lighter - 120W (Car Outlet) |
| LED light An LED light, in the context of a portable power station, refers to a built-in light source that uses light-emitting diodes (LEDs) for illumination. These lights are typically small, energy-efficient, and durable. | Yes; LED lamp |
| DC Outlets DC outlets in a portable power station are ports that provide direct current (DC) electricity, typically at 12 volts. This is different from the standard AC (alternating current) outlets that you'd find in your house. |
1 x 12V/25A (Anderson 378W Outlet) 2 x 12V/3A DC5521 (5.5mm Outlet) |
Miscellaneous
| Box Contents This section refers to all the items, tools, accessories, and cables contained in the box. |
Oscal PowerMax 3600 - AC Charge Cable - Solar Charging Cable - Car charging cable - User Manuals |
| Warranty A warranty on a portable power station refers to a guarantee provided by the manufacturer that the product will be free from defects in materials and workmanship for a specified period of time. | 4 years |
| Certifications Certifications for portable power stations signify that the product has been tested and meets specific safety and performance standards set by independent organizations. |
Europe: CE/RED/ROHS (EU) - Japan: PSE/METI/IEC - America: FCC /DOE/CEC/FCC/UL - South Africa: IEC62368 |
| Color Options In the context of portable power stations, "Color Option" most likely refer to the variety of colors the station itself comes in. | Black |
| Others This is a catch-all category that includes various additional features, specifications, or capabilities that don't fall under the major categories like display, camera, memory, or connectivity. |
Industrial wheels - Extendable handle |
Disclaimer Note:
These specifications were entered manually, hence we CANNOT guarantee 100% accuracy. Also, that your device is listed on this website DOES NOT call for reckless usage! It is crucial to exercise due diligence, as we cannot be held responsible for any damage to your device due to overconfidence in it built quality.
