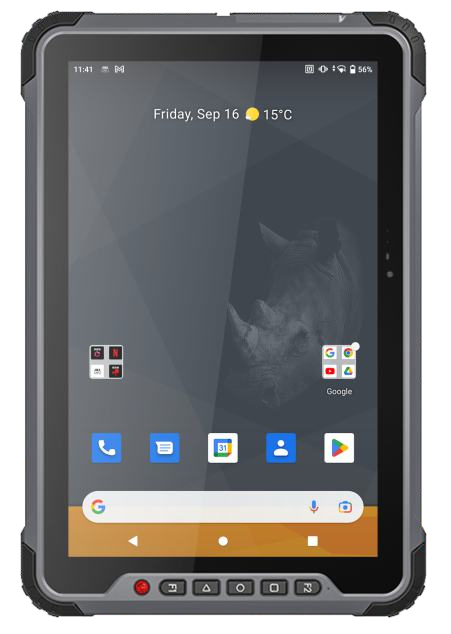

Ruggex Palm Plus
The Ruggex Palm Plus is the direct successor to the Ruggex Palm Pro. While it shares some core features with its predecessor, several key upgrades make it stand out.
Starting from the screen, the Palm Plus has a larger 10.1-inch IPS LCD display with a higher resolution of 1920 x 1200 pixels, providing a sharper pixel density of 286 PPI compared to the Palm Pro’s 8.0-inch screen and 1280 x 800 pixels resolution. This makes it more suitable for detailed tasks and enhanced clarity.

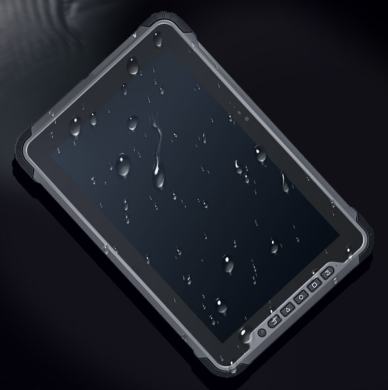

It retains IP68 and Mil-STD-810G certifications for ruggedness but has a more durable drop-to-resistance of 1.2m, compared to the previous model’s unspecified drop resistance. However, the Palm Plus is significantly heavier, weighing 1,110 grams, and measures 277 x 183 x 19 mm, making it larger and bulkier than the Palm Pro which weighs at just 810 grams.
The tablet runs on Android 10, an upgrade from the Palm Pro’s Android 7.1 Nougat. Both tablets use the Qualcomm Snapdragon 625 chipset with an octa-core 2.0 GHz Cortex-A53 processor and Adreno 506 GPU, but the Palm Plus benefits from the newer operating system.
The memory configuration remains the same, with 4GB of RAM and 64GB of internal storage, along with support for SD card expansion via a dedicated slot. Camera features also remain consistent, with a 13MP rear camera with PDAF and a 5MP fixed-focus selfie camera.
Finally, power on the Palm Plus is supplied by a 10,000mAh non-removable battery, which is identical to the Palm Pro’s. Optional features include a LF RFID and UHF RFID and a 1D/2D barcode reader, similar to the Palm Pro.
Full Specifications
Details
| Launch This refers to the date when this device was officially introduced into the market. | Announced 2018, March / Released 2018, March |
| Brand / Model These are key identifiers that indicate the manufacturer or company that produces this smartphone, and the specific model of the phone. |
Ruggex / Palm Plus - Also known as Ruggex Palm Plus Industrial Tablet |
Network Technology
| 2G Bands 2G refers to the second generation of cellular technology and includes various frequency bands for basic voice and text communication. | 850 / 900 / 1800 / 1900 - SIM 1 and SIM 2 |
| 3G Bands 3G refers to the third generation of cellular technology, encompassing different frequency ranges for faster data speeds, mobile internet, and multimedia capabilities. | 3G Bands 2100 - SIM 2 only |
| 4G Bands 4G refers to the fourth generation of cellular technology, operating in specific frequency bands to provide significantly faster data speeds, supporting high-definition video streaming and advanced applications. | LTE Band B1, B3, B7, B20 |
Body
| Ruggedity This indicates the device's durability and ability to withstand harsh conditions or impacts. It is a very popular term used with tough or rugged phones. IP68/IP69K are international ratings that measure a smartphone's resistance to dust and water. MIL-STD-810H is a military standard that sets criteria for the environmental and durability testing of electronic devices. It means this device has undergone various tests to demonstrate its resilience in challenging conditions, such as extreme temperatures, humidity, vibration, and shock. |
IP68 / Mil-STD-810G - Water / dust resistant / drop-to-resistance from 1.2m - Operational temperature: -20℃ ~ +55℃ |

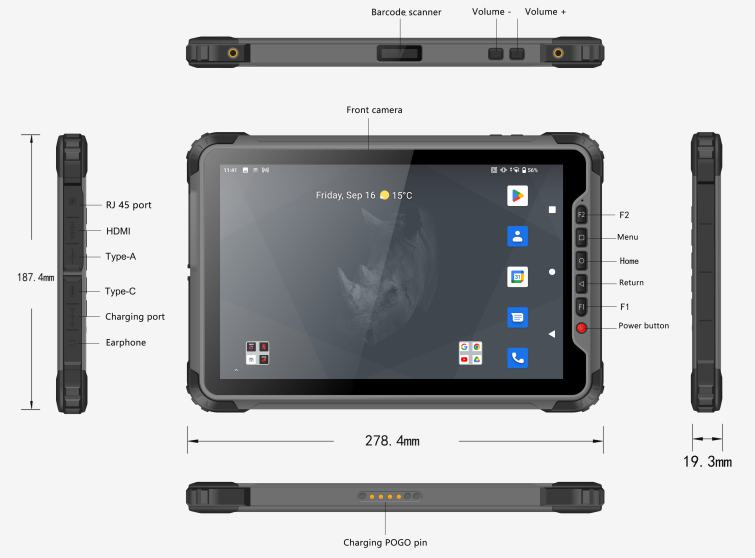

| Dimensions / Weight: This refers to the physical size and weight of the device, measured in millimeter (mm) and grams (g) respectively. | 277 x 183 x 19 mm / 1,110 grams |
| SIM SIM stands for "Subscriber Identity Module." It is a small card, typically inserted into a slot in a mobile phone, that contains important information for connecting the device to a mobile network. SIM cards can come in various sizes, including standard SIM, micro SIM, nano SIM, or even electronic (eSIM), depending on the phone's design. | Single SIM (Micro-SIM) |
Display
| Screen Display refers to the screen or visual interface of the device. It includes details such as screen size, resolution, and technology (e.g., LCD, OLED, AMOLED). | 10.1-inches / IPS LCD touch screen |
| Resolution Screen Resolution refers to the number of pixels that make up the display screen and is typically expressed as a combination of horizontal and vertical pixel counts (e.g., 1920 x 1080, 2560 x 1440, or 3840 x 2160). The screen resolution determines the level of detail and sharpness of the visual content displayed on the smartphone's screen. Higher resolutions generally result in crisper and more detailed images and text | 1920 x 1200 pixels / 18:9 aspect ratio / 286 PPI |
| Features Camera features encompass various functionalities and capabilities that enhance the device's photography and videography experience. These features can include Optical Image Stabilization (OIS) Panorama, HDR, Ai Mode, Night Mode, Portrait Mode, etc. | Scratch resistant glass (Rhino Glass) |
Platform
| OS This is the Operating System. It refers to the software platform that runs on the smartphone and manages the device's hardware and software resources. Common smartphone operating systems include Android (developed by Google), iOS (developed by Apple). | Google Android 10 |
| Chipset This refers to the integrated circuit that serves as the device's central processing unit (CPU). It plays a pivotal role in the smartphone's performance, speed, and energy efficiency. |
Qualcomm MSM8953 Snapdragon 625 (14 nm) CPU - Octa-core 2.0 GHz Cortex-A53 - Adreno 506 GPU |
| Memory This encompasses two components: storage capacity and RAM (Random Access Memory). Storage capacity, typically measured in gigabytes (GB) or terabytes (TB), dictates how much internal space is available for apps, files, and media storage. RAM, measured in gigabytes (GB), is temporary memory crucial for multitasking and app performance, with more RAM generally leading to smoother operation and faster task-switching capabilities. | 4GB RAM + 64GB ROM / SD-card support (uses dedicated slot) |
Camera
| Main The main camera, also known as the rear camera, is the primary camera on the back of the smartphone. It is typically used for capturing photos and videos in various scenarios and is often the more powerful and versatile camera on the device | 13MP rear camera with PDAF |
| Selfie The selfie camera, also known as the front-facing camera, is the camera on the front of the smartphone, primarily used for capturing selfies and video calls | 5MP selfie camera (fixed focus), No LED flash |
| Features Camera features encompass various functionalities and capabilities that enhance the device's photography and videography experience. These features can include Optical Image Stabilization (OIS) Panorama, HDR, Ai Mode, Night Mode, Portrait Mode, etc. | 1080p@30fps video recording / LED Flash |
Communications
| Connectivity This encompasses the device's ability to connect and communicate with other devices and networks. It includes features such as cellular connectivity, Wi-Fi, Bluetooth, NFC (Near Field Communication), and USB connectivity options. | Bluetooth 4.2 A2DP / WiFi 2.4G-5G / NFC / USB 2.0 |
| Navigation Navigation refers to the device's ability to determine and display location information and provide directions to users. This functionality is usually powered by Global Positioning System (GPS) technology. | A-GPS, GLONASS, BeiDou |
| Sensors This refers to the various built-in sensors that enable the device to gather information from its environment and interactions. Common sensors found in rugged smartphones may include fingerprint sensor, light sensor, barometer sensor among others. | Fingerprint scanner (rear), accelerometer, proximity |
Battery and Others
| Battery This section refers to the device's power source and its related specifications. This typically includes details such as the battery capacity, measured in milliampere-hours (mAh) or watt-hours (Wh), and it charging details. | Li-Ion 10,000mAh, non-removable |
| Others This is a catch-all category that includes various additional features, specifications, or capabilities that don't fall under the major categories like display, camera, memory, or connectivity. |
Color: Grey Optional 1D/2D Barcode reader Optional LF RFID and UHF RFID |
Disclaimer Note:
These specifications were entered manually, hence we CANNOT guarantee 100% accuracy. Also, that your device is listed on this website DOES NOT call for reckless usage! It is crucial to exercise due diligence, as we cannot be held responsible for any damage to your device due to overconfidence in it built quality.
